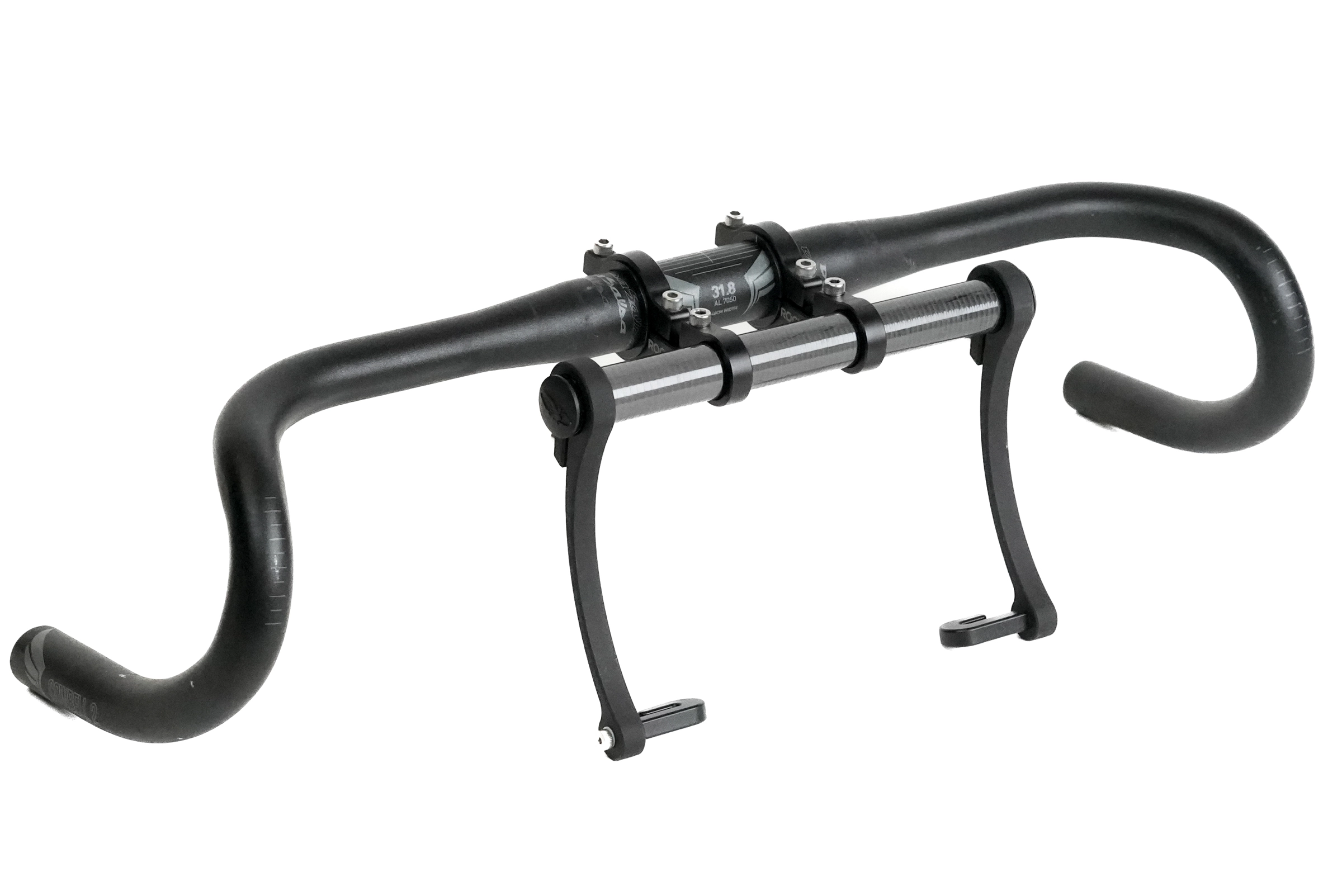

BarJam Cradle
$195.00

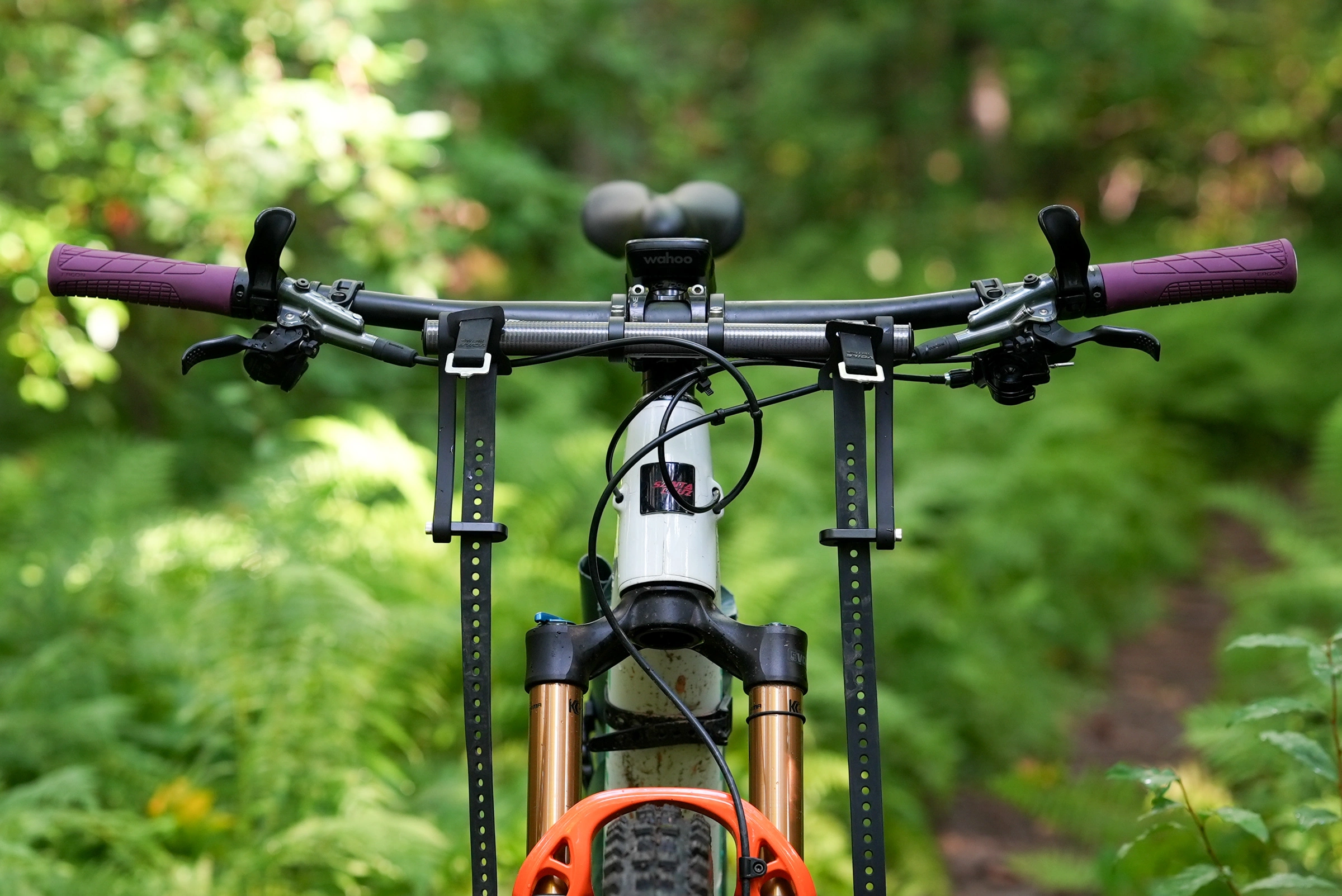

Protect your cables, rip your descents. The BarJam Cradle is a lightweight, exceptionally stable bikepacking harness that protects your cables and secures your dry bag away from your head tube.
Designed to excel on rough singletrack the machined 6061 aluminum bolt-on brackets and cradle arms extend your drybag out and downwards, past your cables and away from your head tube. Includes Armadillo dry bag protector.
***Please note we are sold out of the 32″ Voile straps, but do have the 25″ length (the more popular size and the size that works with all our dry bags). ETA for the 32″ is about 3 weeks.***
Unique, patent pending design

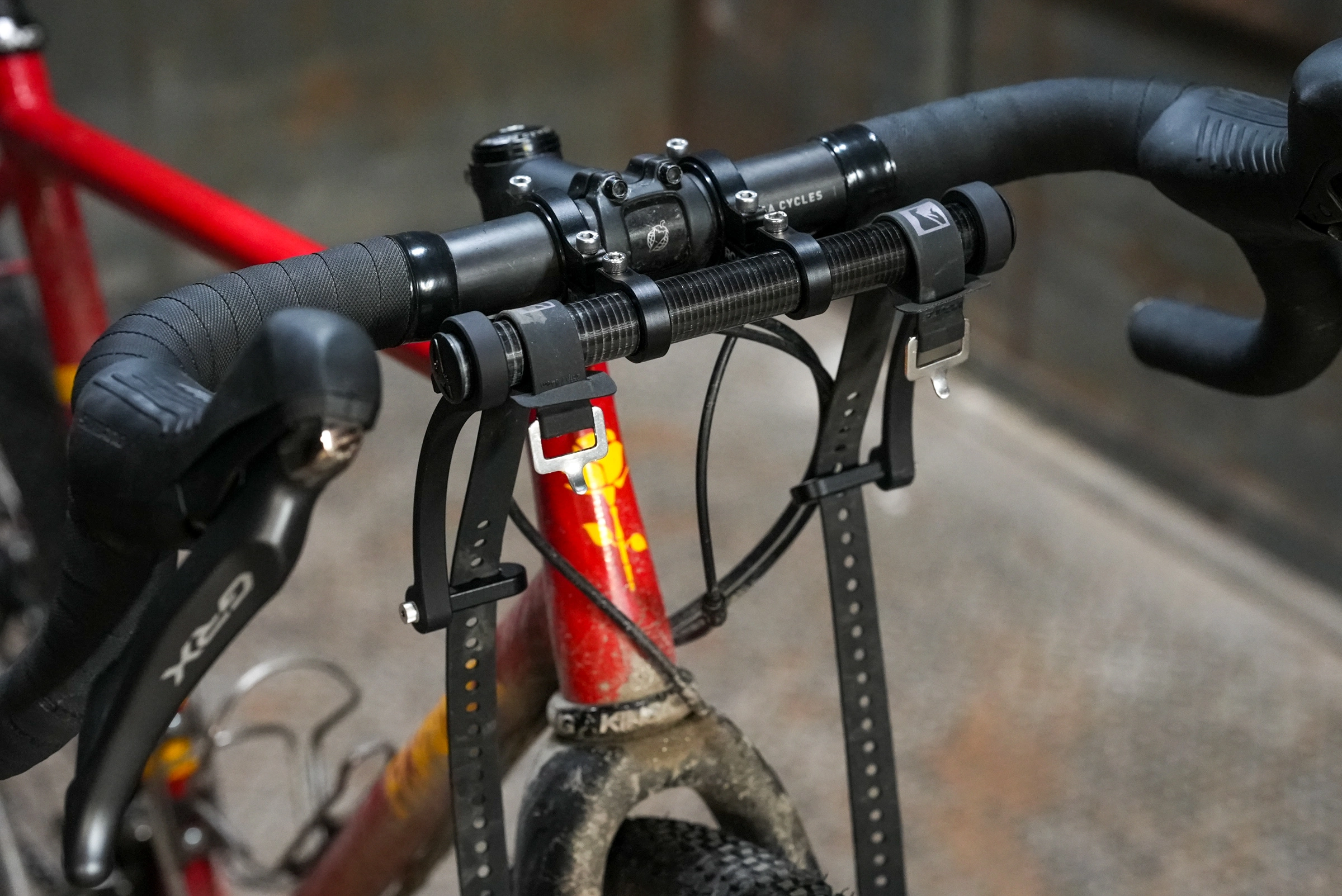

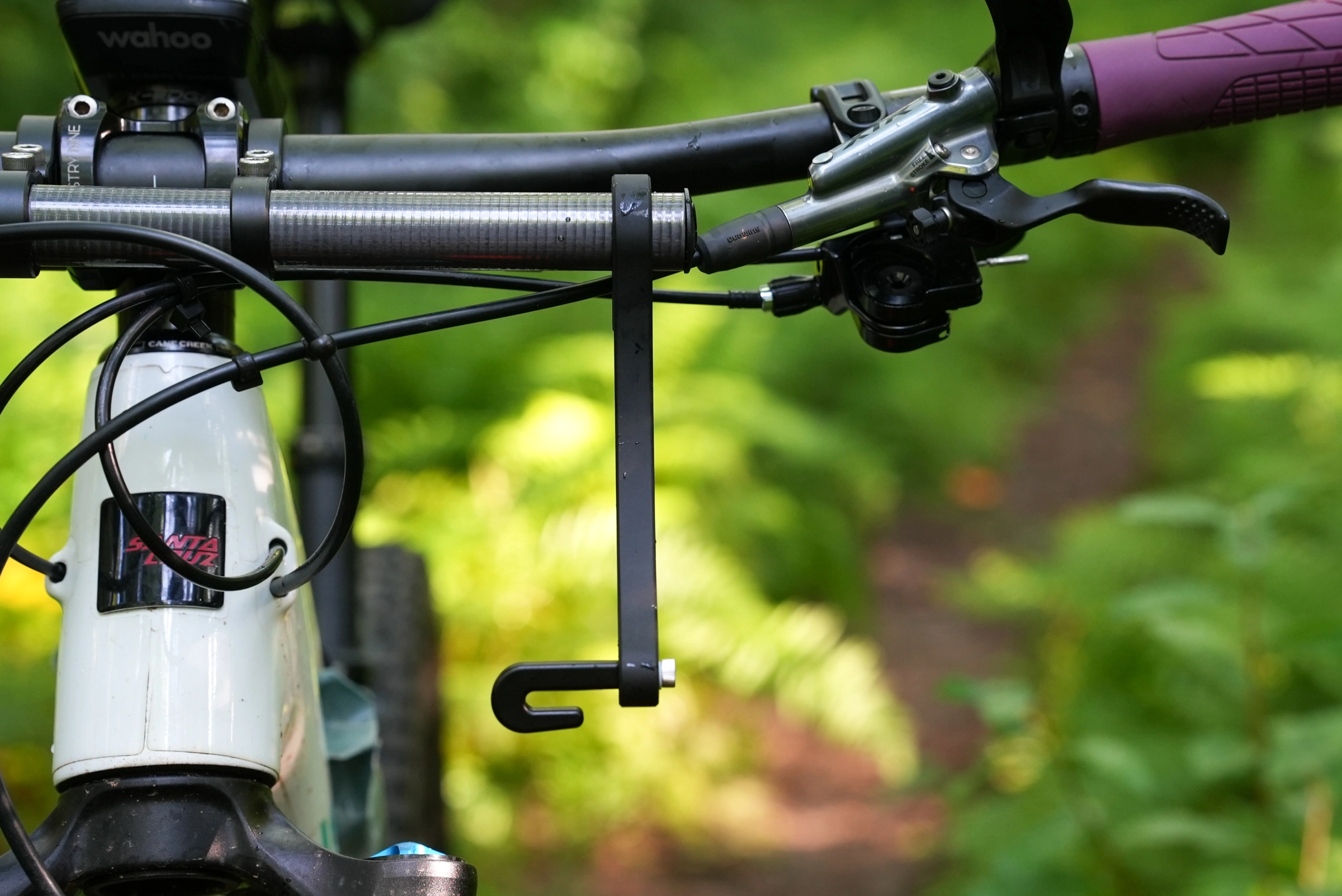

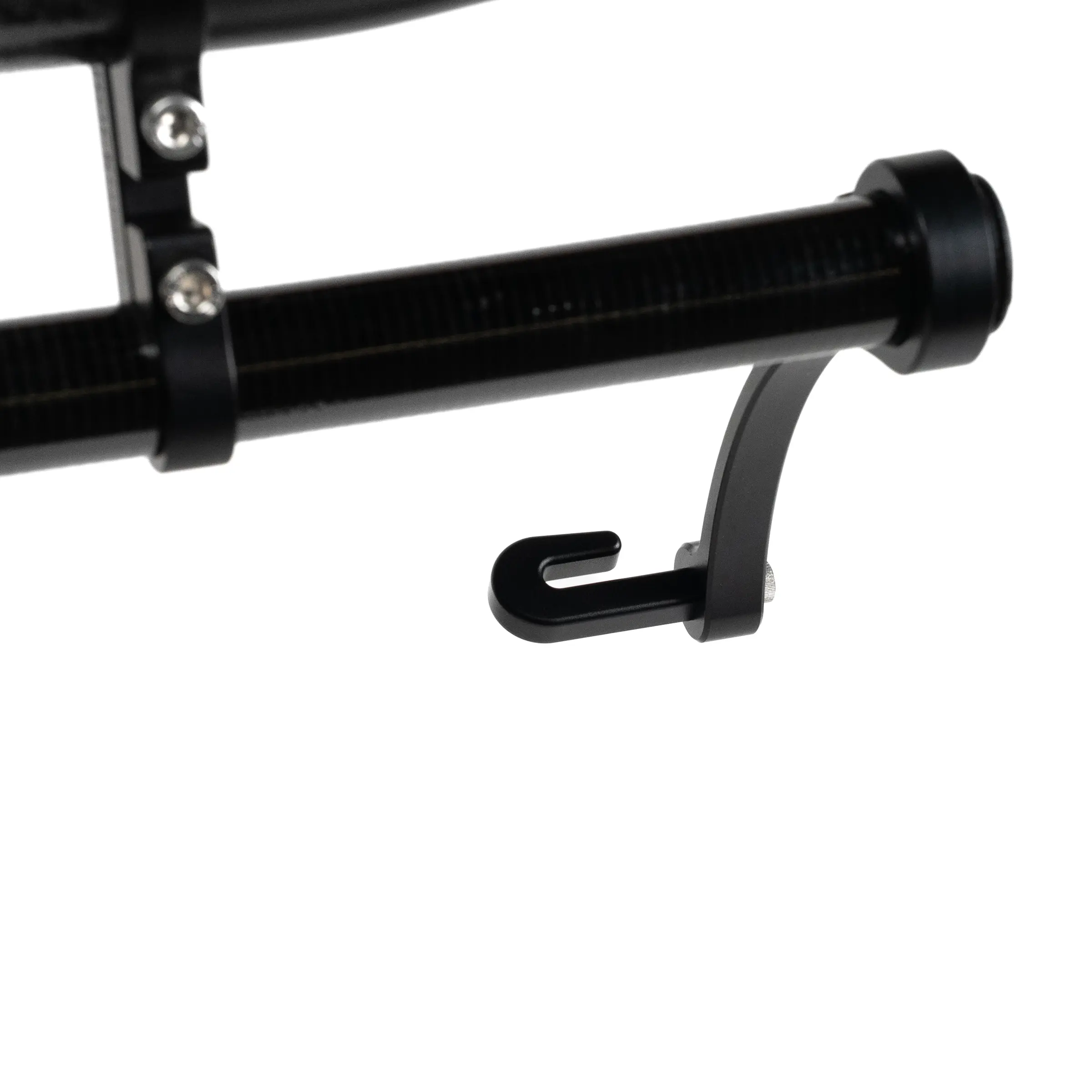

- Independent cradle arms with swivel J-hook strap retention. J-hooks rotate to allow natural angle between straps and bars.
- Top carbon fiber accessory bar (22.2 mm diameter).

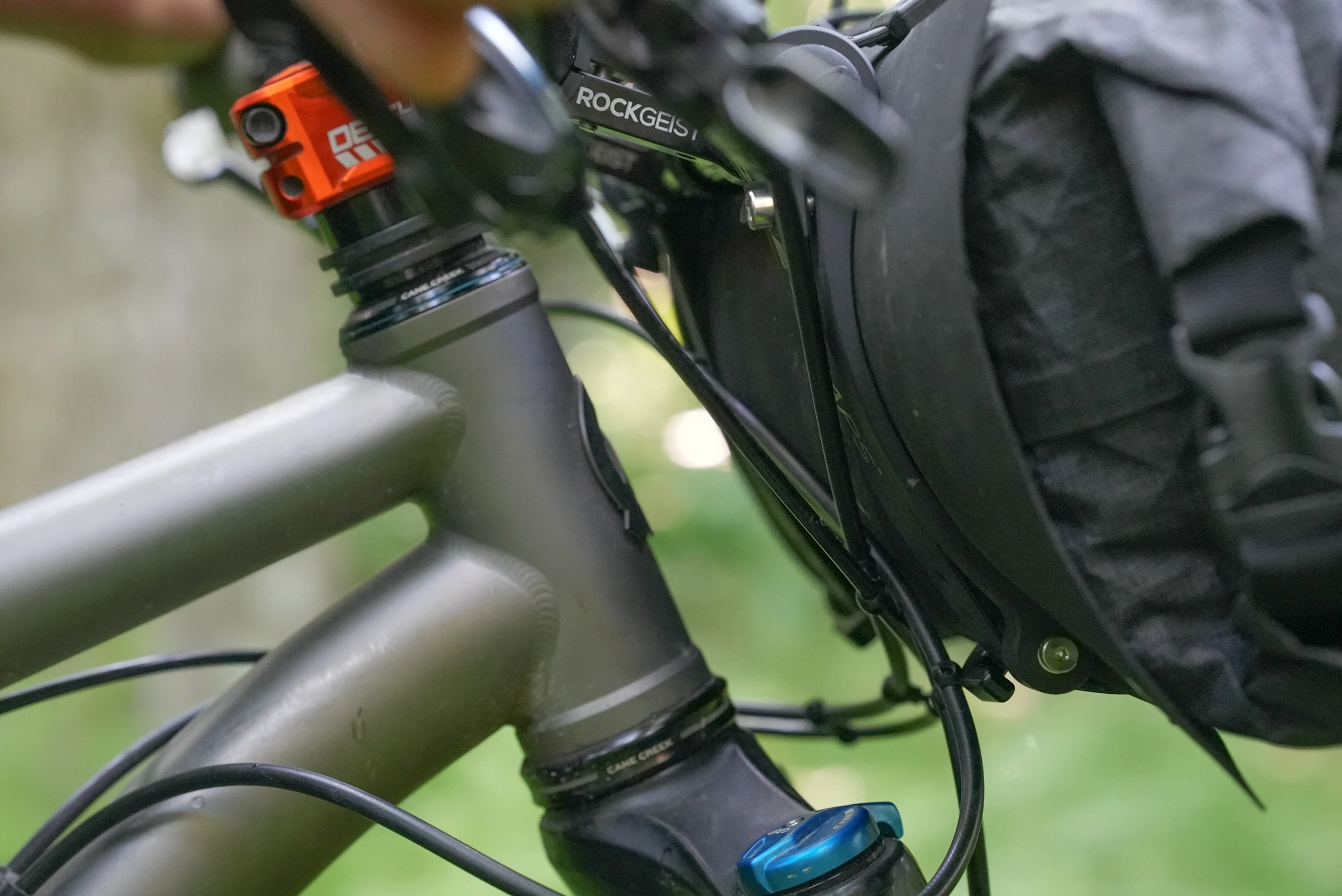

- No rigid cross-member low in front of your head tube. This ensures your frame is not damaged from the cradle during a crash or if your load slips downwards when overloaded.
- 3-axis load adjustability for perfect dry bag placement (lower cradle arms can move independently).
- Cradle arms are backwards compatible with all BarJam Harnesses dating back to 2017.

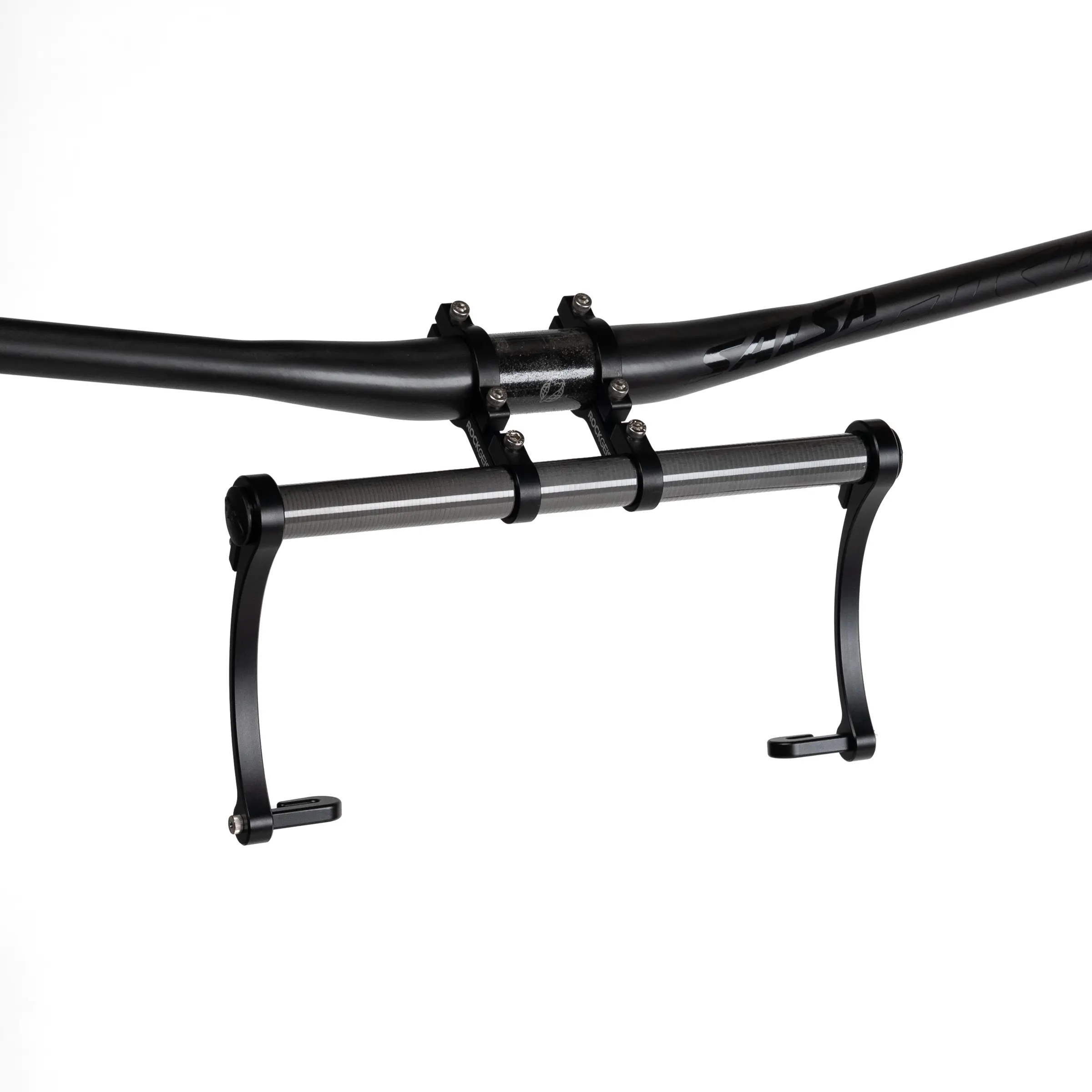

Made from Quality Components
- 6061 aluminum brackets, shims, cradle arms, and J-hooks. The shims are machined 6061 aluminum for greater grip strength and durability.
- No plastic/nylon cradle components.
- Carbon fiber accessory bar, 22.2 mm diameter, either 12" or 8.5" in length.
- Large M5 stainless steel bolts.
What's Included in the base BarJam Cradle ($195 price)
- Pair of handle bar brackets (and shims if 31.8 mm size selected)
- Carbon fiber accessory bar
- Pair of Cradle arms with swivel J-hooks
- Pair of Hypalon strap keepers
- Armadillo drybag protector
Recommended max load is about 3.5 kg. This exact number is dependent on multiple factors, including the location of the load relative to your handlebars. The failure mode from excessive loads for the BarJam Cradle (and many other cradles) is rotation of the load downwards. A design advantage unique to the BarJam Cradle is that there is no bar low that could contact your head tube if the load rotates downwards from excessive forces (e.g., in a crash or from large drops/jumps).

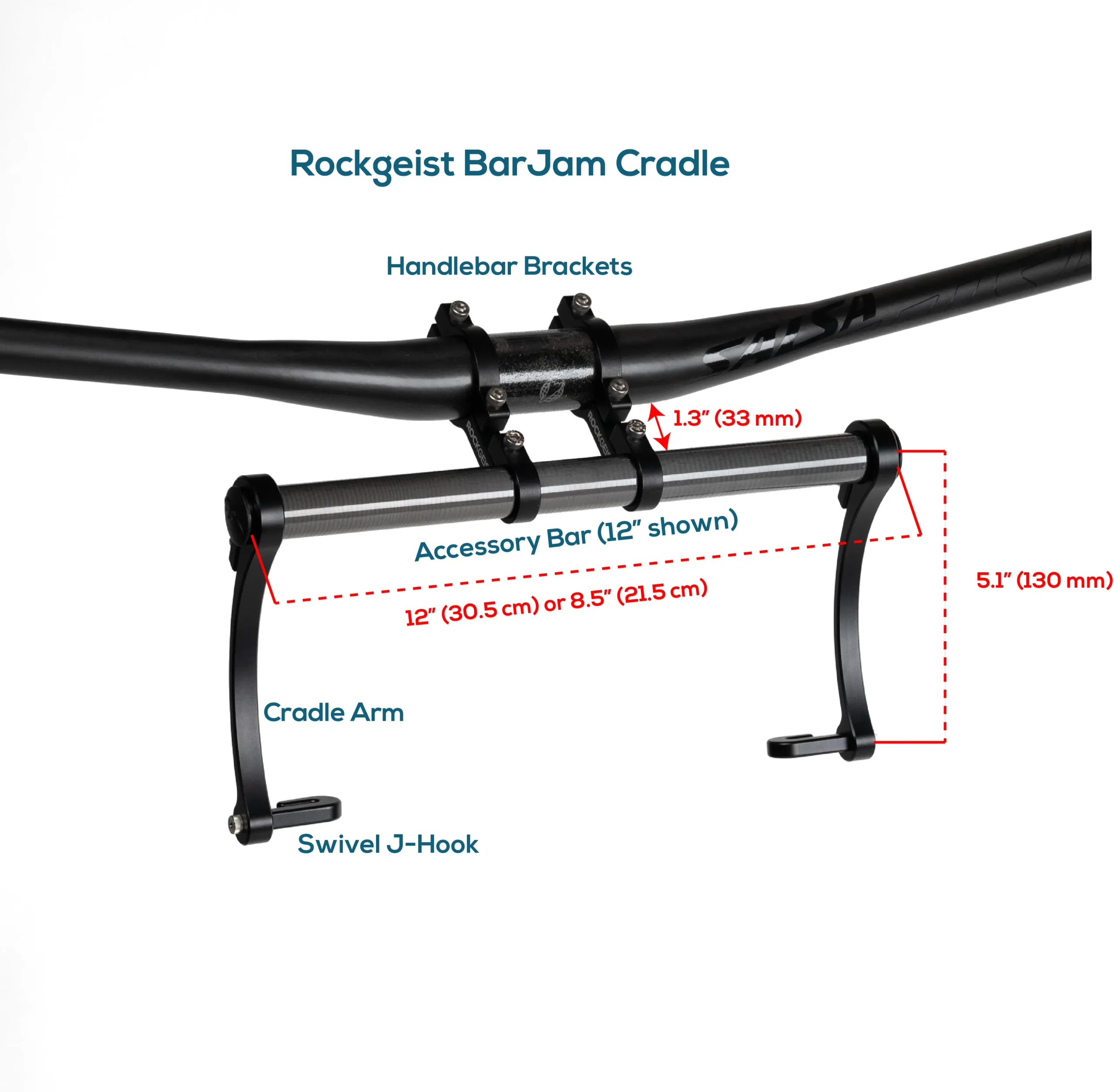

Specs
BarJam Cradle Specs
- Compatible with 35.0, 31.8, or 22.2 handlebars (with appropriate shims).
- 254 grams for the brackets, accessory bar and cradle arms with swivel J-hooks.
- Armadillo dry bag protector is included and optional to use for added abrasion protection for your dry bag (weighs 85 grams).
Ultra-PE dry bag Specs
- Ultra-400 Double opening: 161 grams, 12L max, 7″ packed diameter.
- ALUULA single opening: 90 grams, 15L max, 7″ packed diameter (best ratio of weight to durability on the market).
- Both made with ultra high molecular weight PE to maximize durability while minimizing weight.
Horton Front Pouch Specs
- 254 grams
- Welded seams for 100% waterproofing.
- Compatible with either 8.5″ or 12″ accessory bar and with many other front roll systems that use 3/4″ or 1″ straps.

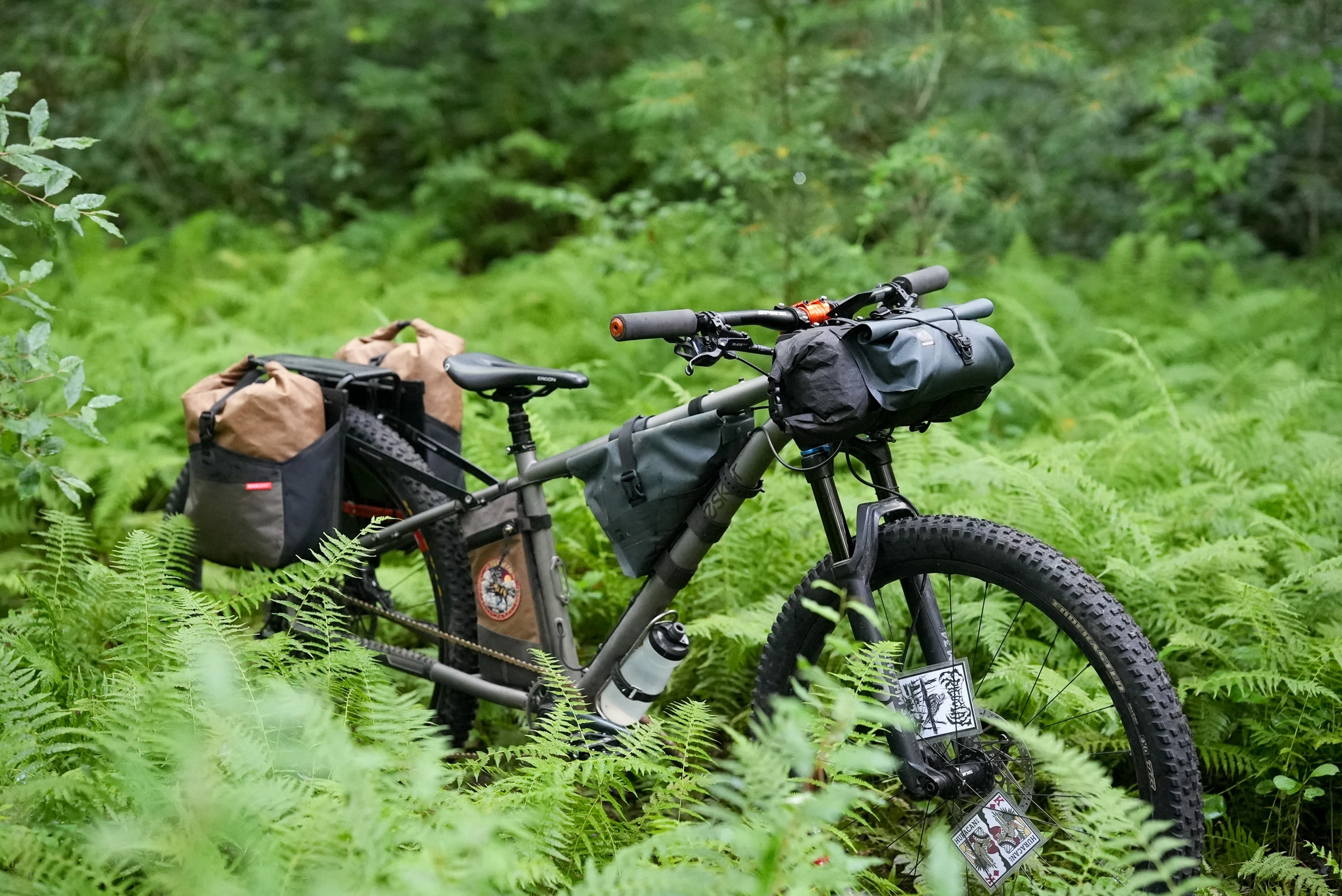

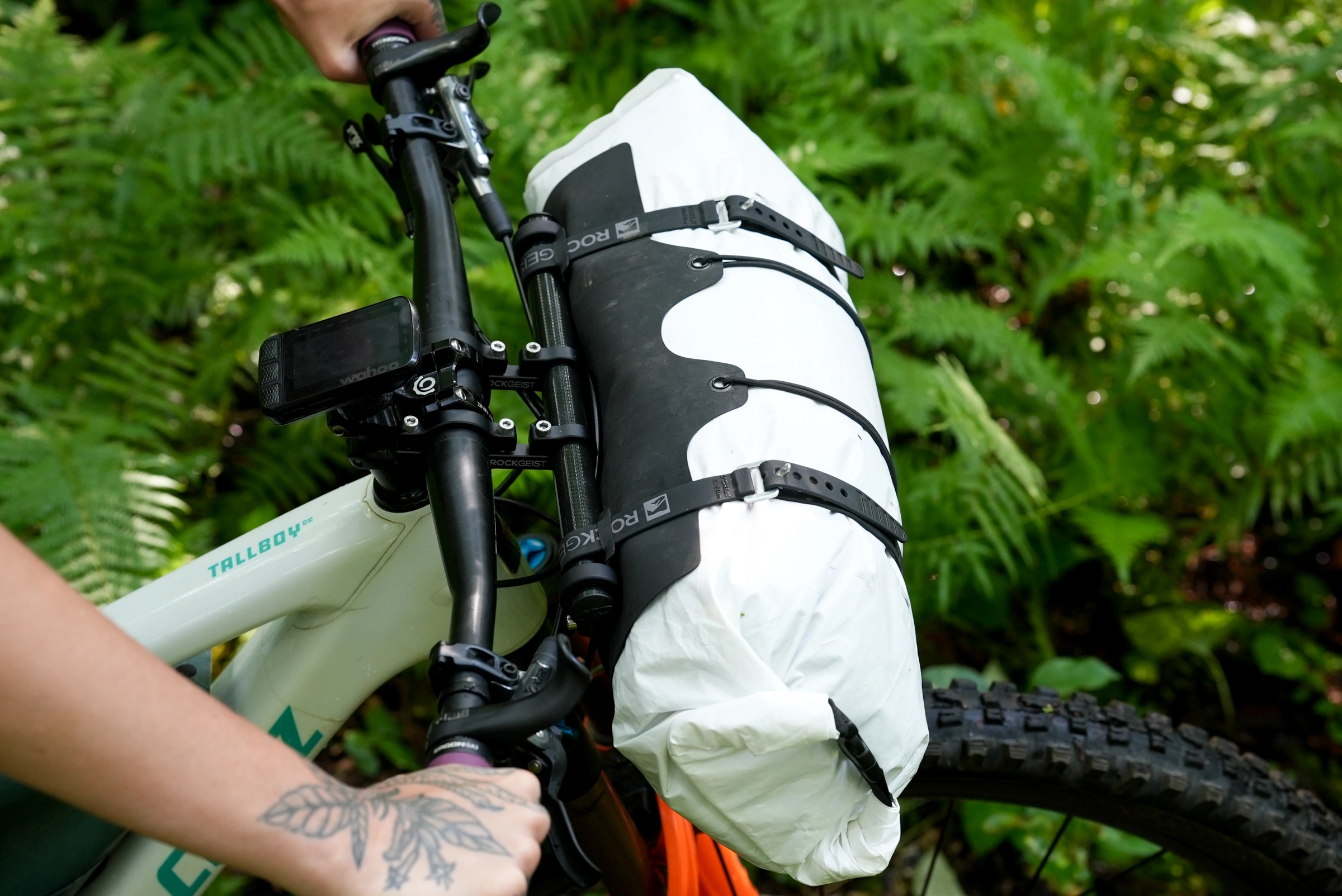

What Packs Best in your BarJam Cradle?

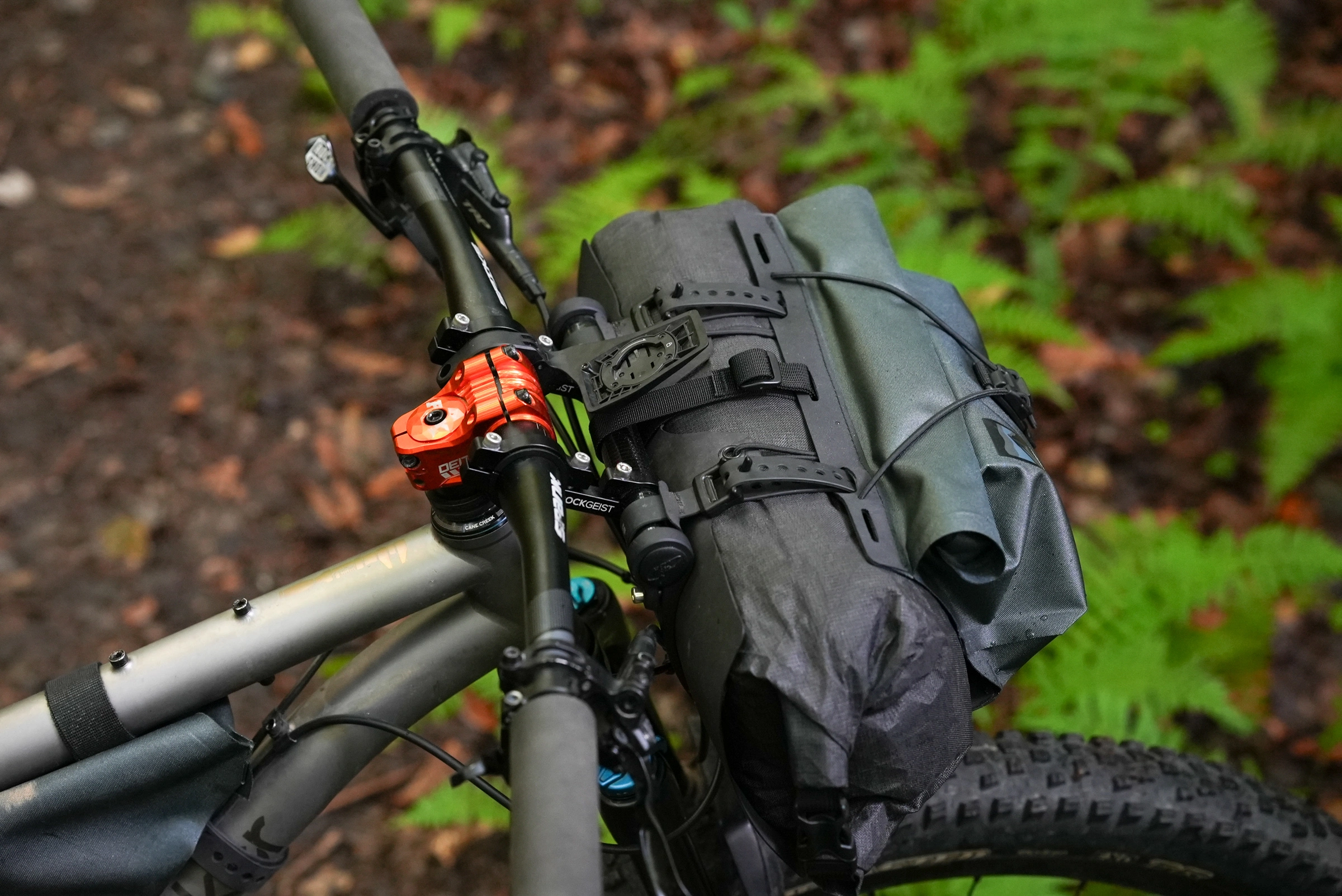

The BarJam Cradle is designed to carry your front dry bag full of your puffy, clothes, and sleeping bag.
Then add your tent, poles, or our Horton front pocket for extra carrying capacity.
Patent Pending Design

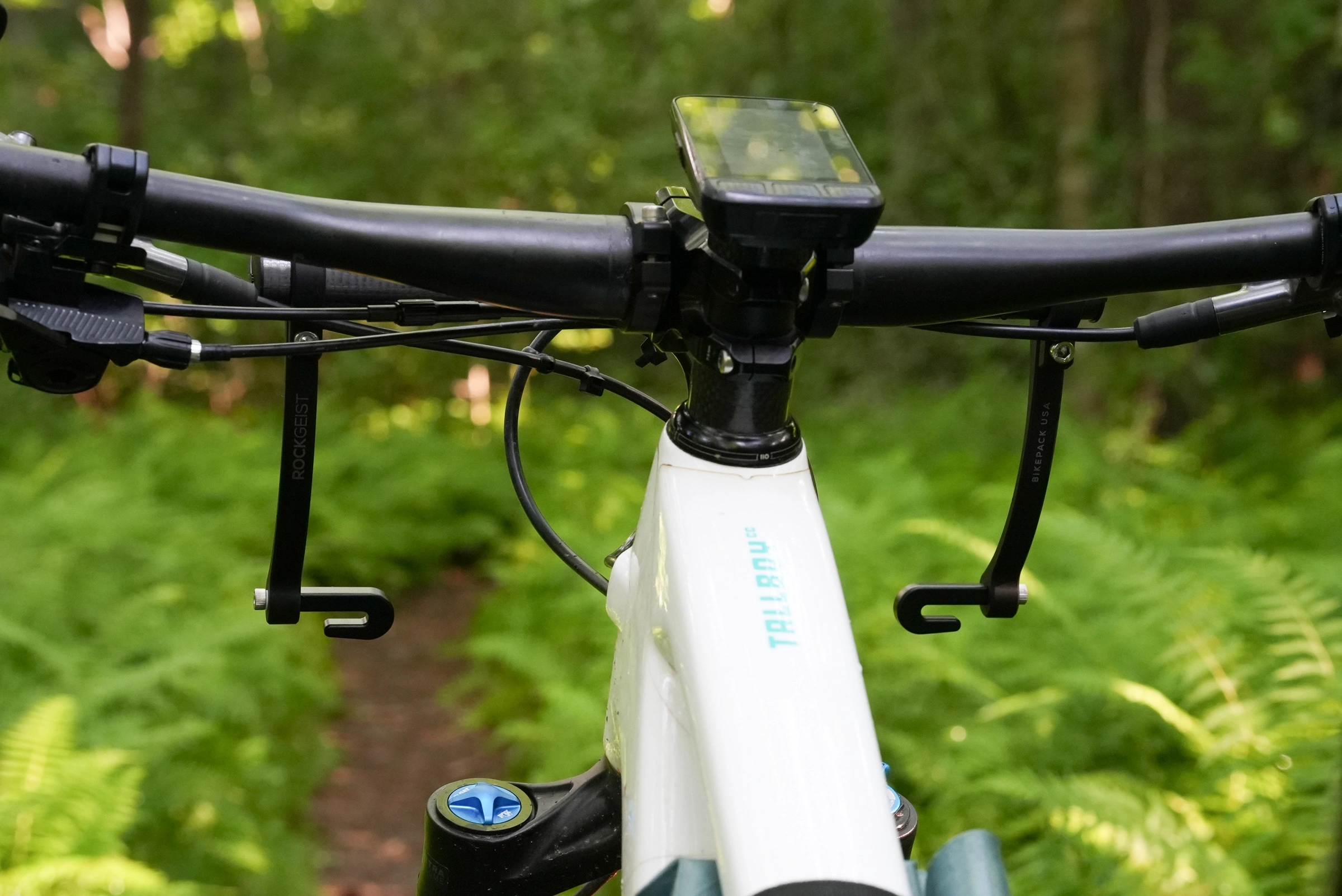

The BarJam’s design advantage is the independent cradle arms that dont use a lower bar across your head tube.
This allows 3-axis dry bag positioning for the best fit, reduced weight, and eliminates the possibility of a lower bar coming in contact with your frame.
Increased Bracket Strength
Fatigue tested, drop tested, and with a higher ultimate strength (728 lbf without breaking!) we’re making this one of the strongest bikepacking cradles on the market. Designed for heavy loads and rough singletrack bikepacking.
